ADAMII LS is an image-based fluorescence analyzer developed for laboratories and industry. This includes brightfield and three fluorescent channels - GFP, RFP and DAPI.
Following assays are available :
- Total cell counting & viability
- Cell cycle
- Apoptosis
- Fluorescence expression
Using acridine orange (AO) and DAPI staining solutions, total and viability can be measured.

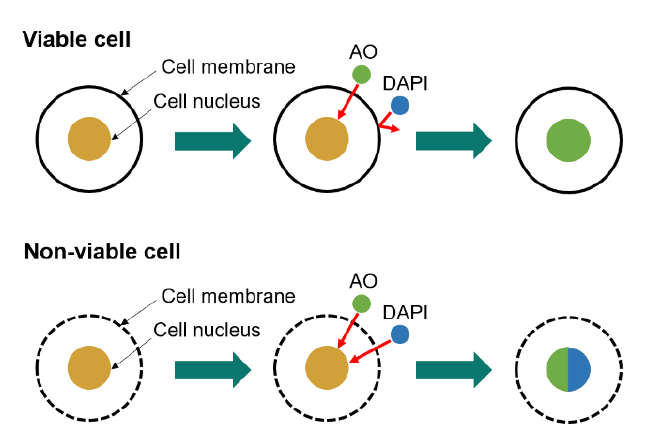

Fig. 1) Mechanism of AO and DAPI
Apoptosis is analyzed using Annexin V-PE and DAPI.

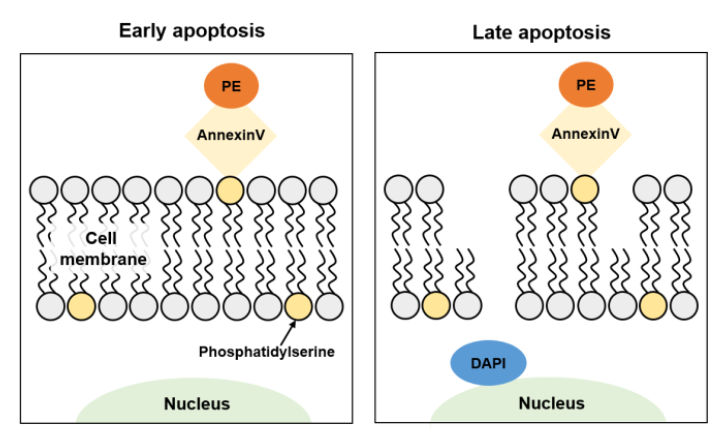

Fig.2 ) Mechanism of apoptosis reagent in early and late phase
Specifications
| Lens | 10x |
| Light source | Brightfield / UV / Blue / Green LED |
| Analysis time | Approx. 2 min to 4 min 30 sec |
| Loading volume | 25 uL |
| Measuring volume | < 7.8 uL |
| Assay reagent |
Store at temp between 2 - 8 °C Expires 1 year from manufacture |
| Assay slide |
Store at temp between 15 - 30 °C Expires 2 year from manufacture |
